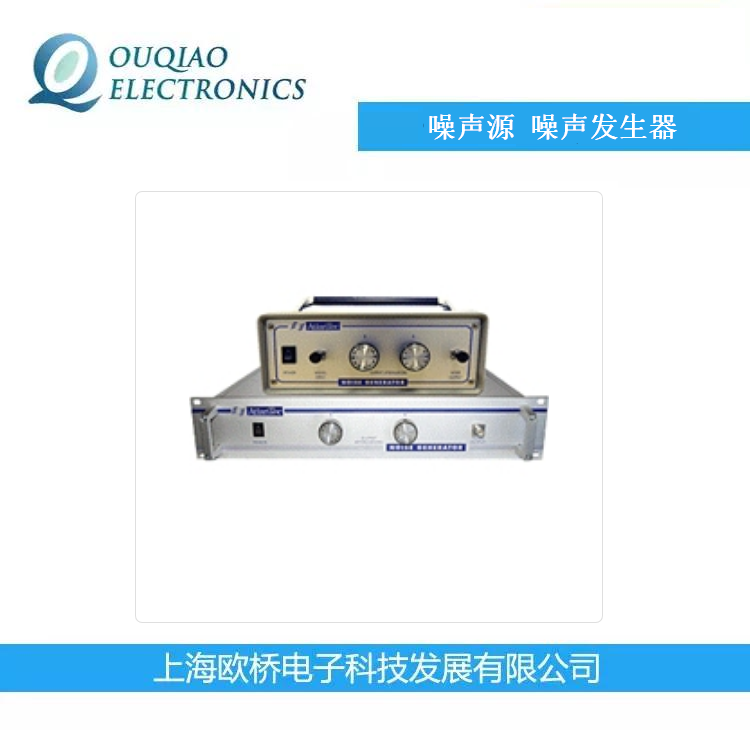

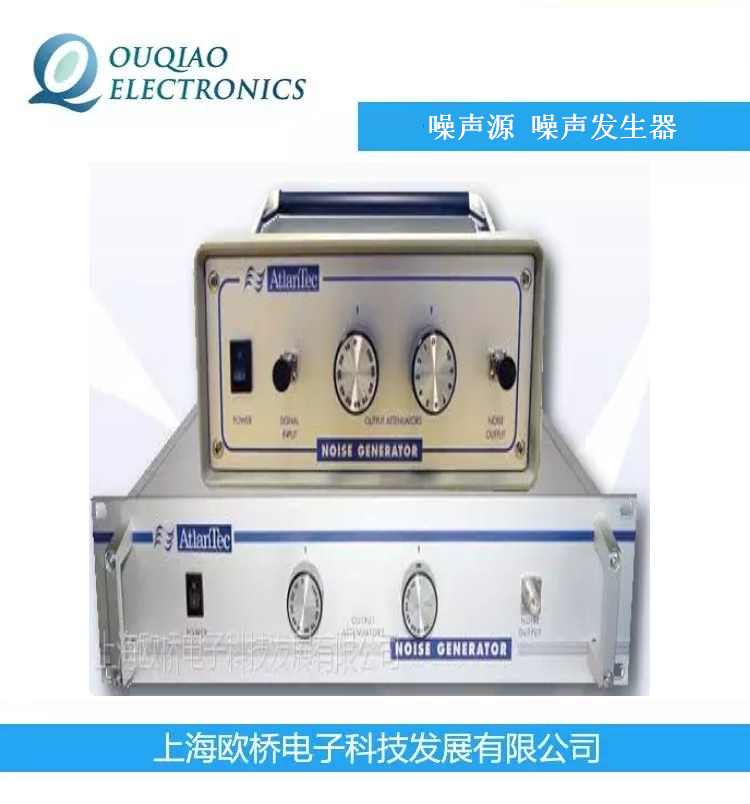

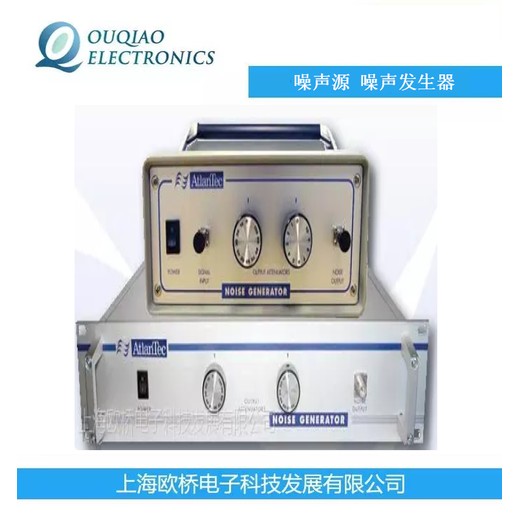

ATLANTEC寬帶噪聲發生器ANG-1601

品牌：Atlantic Microwave

型號：ANG-1601

Atlantic Microwave公司的ANG-1601是一種噪聲源，頻率為10 Hz至20 KHz，噪聲輸出為-30 dBm/Hz，輸出功率為13 dBm，平坦度為0.5 dB，50/60Hz電壓為80至240 V。標簽：機架安裝

產品名稱：ATLANTEC寬帶噪聲發生器ANG-1601

型號：ANG-1601

頻率范圍(GHz)：10HZ-20KHZ

阻抗:50 歐姆

噪音密度 :-30DBM/HZ

輸出平坦度：±0.5DB

衰減值：  0-10DB 1dB步進標準

          0-100DB

          0-1.0DB

射頻輸出連接: SMA F

前面板:       RF輸出

              衰減器控制旋鈕

              ON / OFF開關

后面板:       IECAC電源接頭

              交流電源開關

              交流保險絲

工作溫度：    -10℃-50℃

規格溫度:     +25℃

輸入功率:     80-240V50/60HZ@

儀器尺寸:     14.6（370）×4.4（110）×11.8（300）INS（毫米）進行加/傾斜手柄

相關型號選型：

RNG-1803 500 Hz to 500 KHz Noise Source

RNG-1811 5 MHz to 1 GHz Noise Source

RNG-1624 2 to 4 GHz Noise Source

RNG-1807 250 KHz to 100 MHz Noise Source

RNG-1808 10 to 200 MHz Noise Source

RNG-1810 2 to 500 MHz Noise Source

RNG-1809 10 to 300 MHz Noise Source

RNG-1801 500 Hz to 20 KHz Noise Source

RNG-1613 10 MHz to 2.5 GHz Noise Source

RNG-2618 2 to 18 GHz Noise Source

RNG-1805 500 Hz to 10 MHz Noise Source

RNG-1608 100 Hz to 500 MHz Noise Source

RNG-1605 10 Hz to 10 MHz Noise Source

RNG-1612 1 MHz to 2 GHz Noise Source

RNG-1603 10 Hz to 500 KHz Noise Source

RNG-1610 100 Hz to 1.5 GHz Noise Source

RNG-1607 100 Hz to 100 KHz Noise Source

RNG-1609 100 Hz to 1 GHz Noise Source

RNG-1601 10 Hz to 20 KHz Noise Source

ANG-1803 500 Hz to 500 KHz Broadband Noise Generator

ANG-2618 2 to 18 GHz Broadband Noise Generator

ANG-1624 2 to 4 GHz Broadband Noise Generator

ANG-1811 5 MHz to 1 GHz Broadband Noise Generator

ANG-1808 10 to 200 MHz Broadband Noise Generator

ANG-1805 500 Hz to 10 MHz Broadband Noise Generator

ANG-1807 250 KHz to 100 MHz Broadband Noise Generator

ANG-1810 2 to 500 MHz Broadband Noise Generator

ANG-1801 500 Hz to 20 KHz Broadband Noise Generator

ANG-1809 10 to 300 MHz Broadband Noise Generator

ANG-1612 1 MHz to 2 GHz Broadband Noise Generator

ANG-1613 10 MHz to 2.5 GHz Broadband Noise Generator

ANG-1605 10 Hz to 10 MHz Broadband Noise Generator

ANG-1601 10 Hz to 20 KHz Broadband Noise Generator

ANG-1608 100 Hz to 500 MHz Broadband Noise Generator

ANG-1609 100 Hz to 1 GHz Broadband Noise Generator

ANG-1610 100 Hz to 1.5 GHz Broadband Noise Generator

ANG-1607 100 Hz to 100 KHz Broadband Noise Generator

ANG-1603 10 Hz to 500 KHz Broadband Noise Generator
